The PCL Standard Air Line Adaptor is suitable for most compressed air applications.
Excellent customer support and fully warranted service for many brands
For over 75 years, the original UK profile Standard Adaptor, has been manufactured in the UK to the highest possible standards, alongside PCL couplings, with the “Made in Sheffield” Standard Adaptor now a benchmark in the UK for quality and reliability.

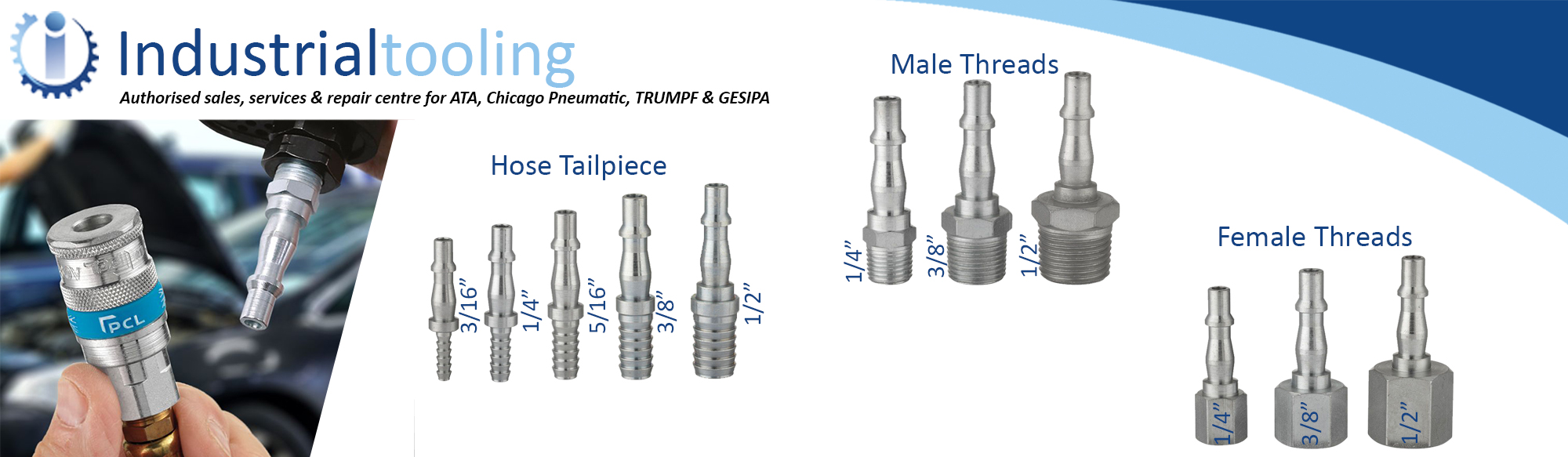

| Image | Part no. | Description | Connection |
|---|---|---|---|
 | ACA2746 | Female | 1/4" |
 | ACA6582 | Female | 3/8" |
 | ACA6583 | Female | 1/2" |
 | ACA2593 | Male | 1/4" |
 | ACA6909 | Male | 3/8" |
 | ACA6584 | Male | 1/2" |
 | ACA2486 | Hose Tailpiece | 3/16" |
 | ACA1793 | Hose Tailpiece | 1/4" |
 | ACA2487 | Hose Tailpiece | 5/16" |
 | ACA2488 | Hose Tailpiece | 3/8" |
 | ACA9438 | Hose Tailpiece | 1/2" |
| Nominal bore | 5 mm |
| Flow Rate | 43 cfm @ 100 psi |
Maximum Working Pressure | 14 bar / 200 psi |
Temperature Range | -40°C to 100°C |
| Material | Steel |
| Interchange | Rectus 19, Kee 057 Series, OETIKER SC Series P, Ludecke ESB |
| Packaging | Bulk |
