ATA SMD30LR Die Grinder

Category:





Standard lead time may apply

ATA SMD30LR Die Grinder



Product details

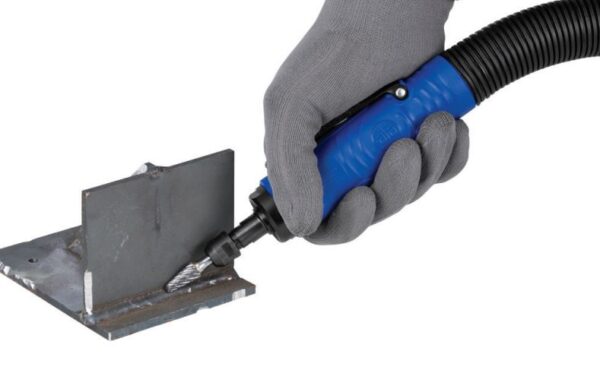

ATA SMD30LR Die Grinder is specifically designed to improve operator control and comfort. Thanks to the motor damping system, these grinders operate at a reduced vibration level giving increased consumable life and efficient stock removal.



Features

  • Unique vibration dampening system
  • Moulded sleeve for improved ergonomics, operator comfort and insulation
  • Ergonomically designed lever construction
  • Excellent power to weight ratio
  • Light weight for operator comfort



Recommended Consumables

  • Tungsten Carbide Burs (up to 12 mm)
  • Mounted points



Suggested Applications

  •  Perfect for precision deburring and finishing.



Click on the image below for ATA Die Grinder Range Brochure

ATA SMD30LR Die Grinder 2

Want to see a video on ATA Anti-vibration Grinder – SMD Line? Click here



Click here to see other Die Grinders Jeaton supplies

Additional information

Speed

30 000 rpm

Power

0.472 hp, 310 W

Weight

0.32 kg

Length

167 mm

Height

35 mm

Air consumption

12.50 cfm

Noise level (dBA)

75

Standard Collet Size

6 mm

Collet Options

3 mm

Collet Type

CB Type

Exhaust type

Rear

Lever type

Safety lever
