Chicago Pneumatic CP1117P26 Drill

Category:





Standard lead time may apply

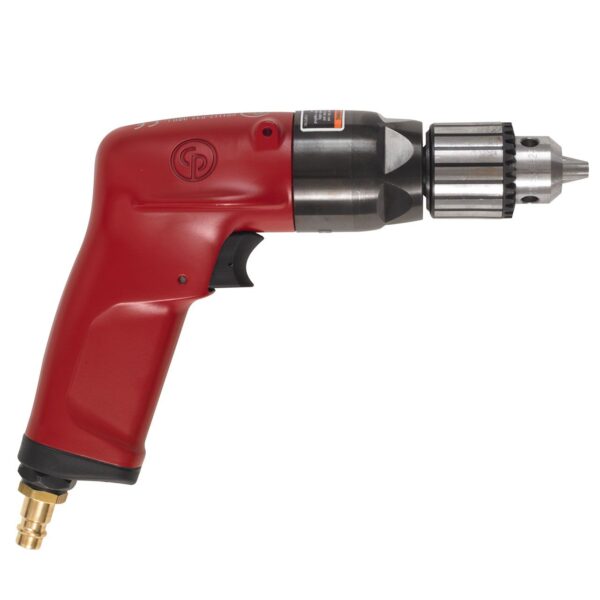

Chicago Pneumatic CP1117P26 Drill



Product details



Chicago Pneumatic CP1117P26 Drill is a 3/8″ (10mm) industrial pistol drill with Jacobs industrial keyed chuck. High power operator comforts thanks to exclusive ergonomic features. Designed for high durability and precision.



Features

  • 3/8″ (10 mm) industrial pistol drill with Jacobs industrial keyed chuck
  • The best power to weight ratio with 1 hp (750 W) motor
  • Durable gearbox reduce maintenance cost and downtime



Benefits

  • Improve your productivity thanks to high power & speed
  • Operator comfort thanks to exclusive ergonomic features
  • Designed for intensive duty and high durability for industrial production applications



Click on image below to see the CP Operator Manual

CP1117P26 4

For CP multilingual Safety Instructions & Safety Data Sheets, click here

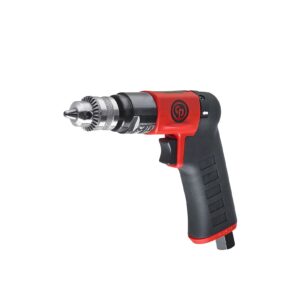

Click here to see other Drills Jeaton supplies

Additional information

Length

210 mm

Net Weight

0.99 kg

Average air consumption

597 cfm

Actual air consumption

29.8 cfm

Free speed air consumption

35.2 cfm

Air inlet thread size

1/4 "

Min. hose size

10 mm

Sound pressure

83 db(A)

Sound power

94 db(A)

Vibration ISO

ISO-28927-5

Vibration

3.5 m/s²

Vibration uncertainty (K)

1.7 m/s²

Chuck capacity

10 mm

Collet/ spindle size

3/8-24

Free speed

2600 rpm

Power

1 hp

Stall torque

6.3 Nm
