Trumpf TKF 1100 Beveller

Category: Standard lead time may apply

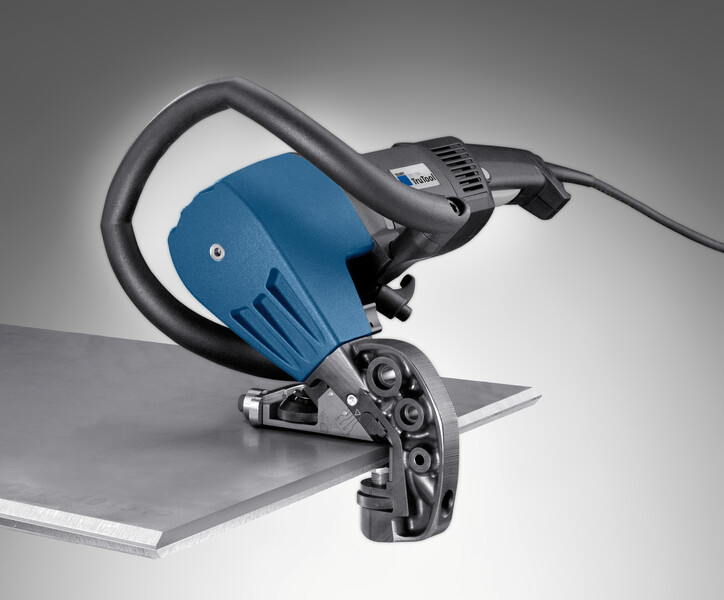

Trumpf TKF 1100 Beveller



Product details



The Trumpf TKF 1100 Beveller is the first choice for processing stainless steel and high-tensile steels. It enables you to create metallically smooth edges with great precision and no emissions. There is no need for reworking. You can apply welding seams not only to straight sheets, but also to tubes, interior cut-outs and curved edges. A rotating motor handle, in combination with the adjustable bow-handle, ensures optimal manoeuvrability.



Features

  • For stainless steel
    • The TKF 1100 was specifically designed for use with stainless steel.
  • Ideal for limited spatial conditions
    • Ideal for limited spatial conditions
  • Rotating motor handle
    • Ideal for applications in which you use the machine tilted by 90°.
  • The right setting
    • It is quick and easy to adjust the optimal settings for the chamfer height and sheet thickness.



Suggested Applications

  • For straight edges and radius edges – welding seam preparation on outer and inner contours. With interior cut-outs from 80 mm in diameter and curved edges with radii from 40 mm.
  • Welding seam preparation on tubes with an inside diameter from 80 mm.



To see the TKF 1100 Technical Data Sheet, click on image below.

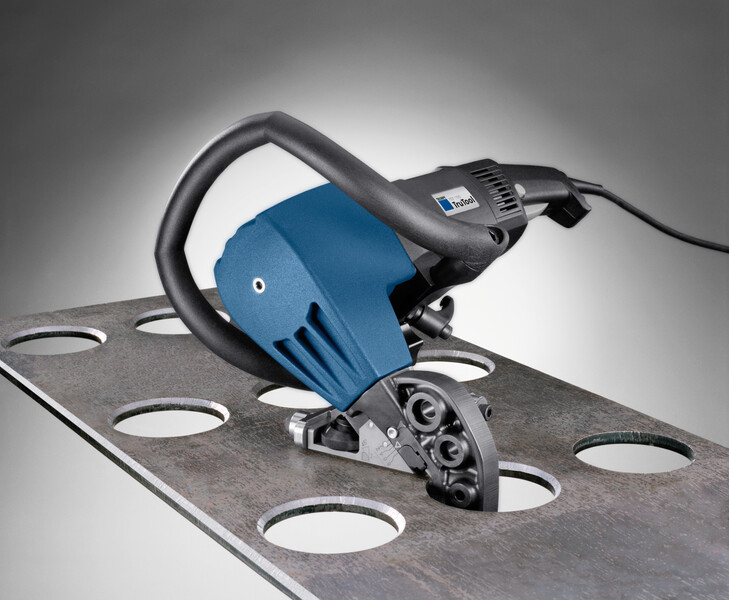

TKF 1100 beveller 4



To see a video on Bevellers, click here



To see other Bevellers Jeaton offers, click here

Additional information

Maximum chamfer length, steel 400 N/MM²

11 mm

Maximum chamfer length, steel 600 N/MM²

9 mm

Maximum chamfer length, steel 800 N/MM²

6 mm

Smallest radius

40 mm

Working speed

2 m/min

Stroke rate at nominal load

340 / 440 1/min

Nominal power consumption

1600 W

Sheet thickness

3 mm – 25 mm

Weight with handle, without cable

10 kg
